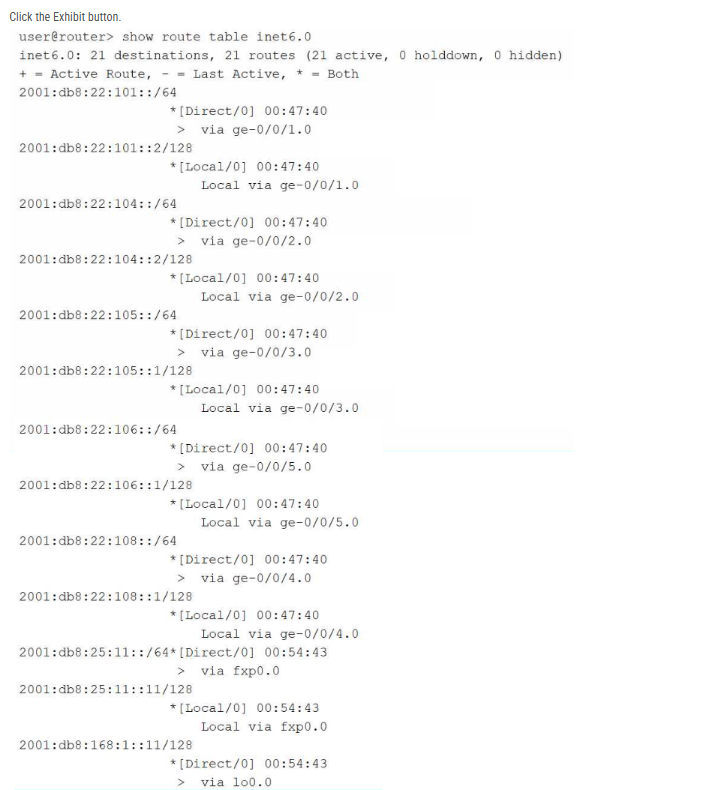

The provided exhibit displays the output of the show route table inet6.0 command, which represents the master routing table for IPv6 unicast traffic in Junos OS. Analysis of the specific route entries reveals that all listed destinations are categorized as either [Direct/0] or [Local/0]. These route types indicate that the table only contains networks physically connected to the router's interfaces and the specific IP addresses assigned to those interfaces.

Because there are no routes identified by dynamic protocols (such as OSPFv3, IS-IS, or BGP) or static entries, it is verified that the router is not learning IPv6 routes from any neighbors or peers. Consequently, the routing table lacks reachability information for any non-local or remote IPv6 segments. Without these routes or a configured default gateway (::/0), the router is unable to forward traffic to remote IPv6 networks. Statements C and D are factually incorrect based on the exhibit: the 2001:db8:22:108::/64 network is associated with interface ge-0/0/4.0 (not ge-0/0/5.0), and the 2001:db8:22:107::/64 network is entirely absent from the displayed routing table.

The Routing Engine (RE) functions as the centralized processor and administrative core of any Junos OS-based platform. Its primary responsibility involves the execution and maintenance of the control plane, which includes running all active routing protocols such as OSPF, BGP, and IS-IS. Through these protocols, the RE exchanges topology information with neighboring routers, builds the Routing Information Base (RIB), and calculates the optimal paths for traffic. Once these paths are determined, the RE distributes the resulting Forwarding Information Base (FIB) to the Packet Forwarding Engine (PFE) for hardware-level execution.

In addition to its protocol duties, the Routing Engine manages the device configuration and the overall system environment. This includes providing the user interface (CLI or J-Web), managing the candidate and active configuration databases, and handling the commit process. While the PFE is specifically designed to forward transit traffic and evaluate that traffic against firewall filters at line rate, the RE focuses on the higher-level logic and management tasks. This architectural separation ensures that management functions---such as a complex configuration commit or a protocol re-convergence event---do not degrade the performance of the data plane, allowing the device to continue forwarding user traffic without interruption. Reference: Junos OS Fundamentals, Routing Engine Functions, Management and Control Planes.
